• 28 reusable templates
• 4 angles: 30°, 45°, 60°, 90°
• 7 tubing ODs from 1.5″ to 3"

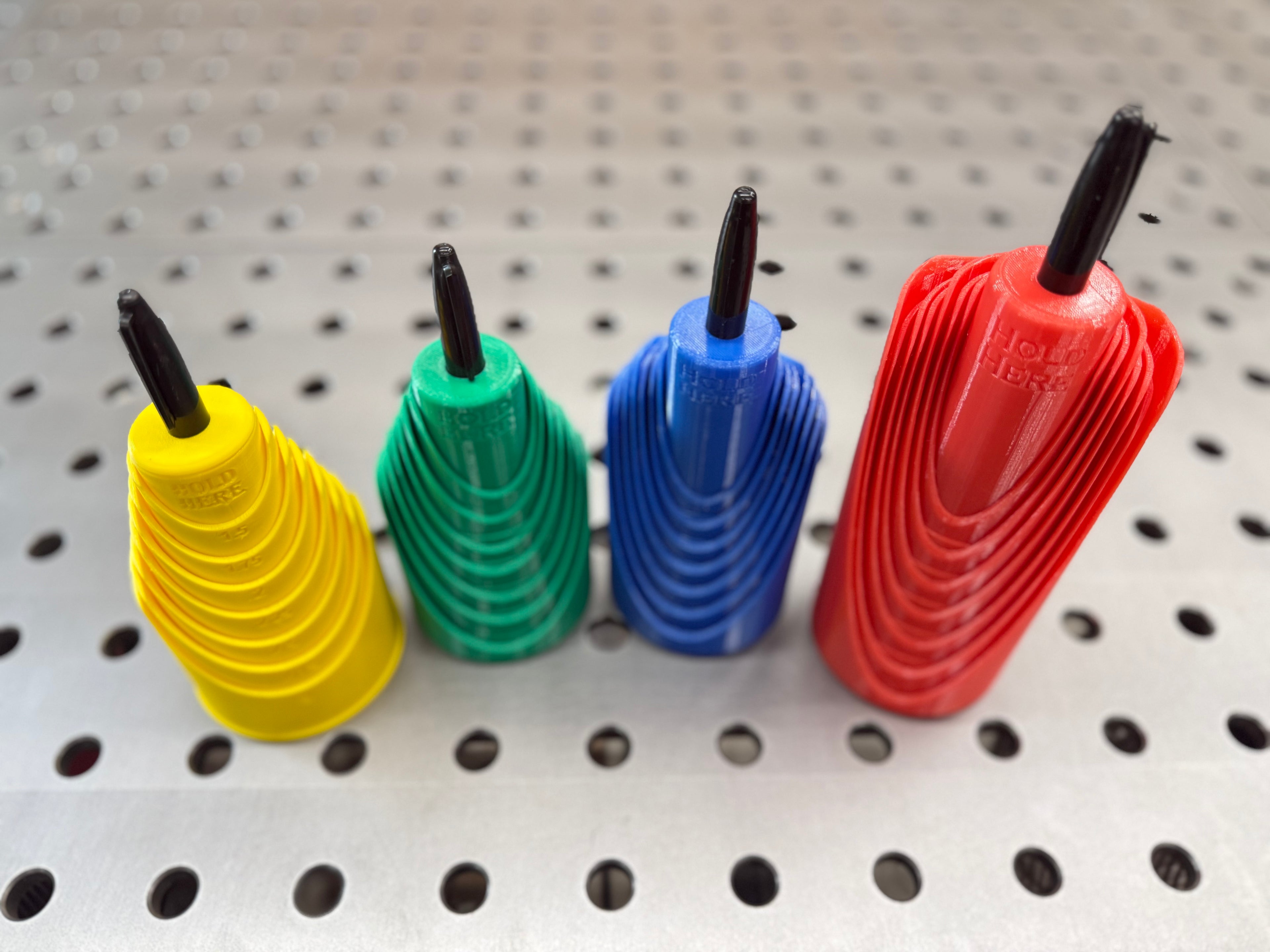

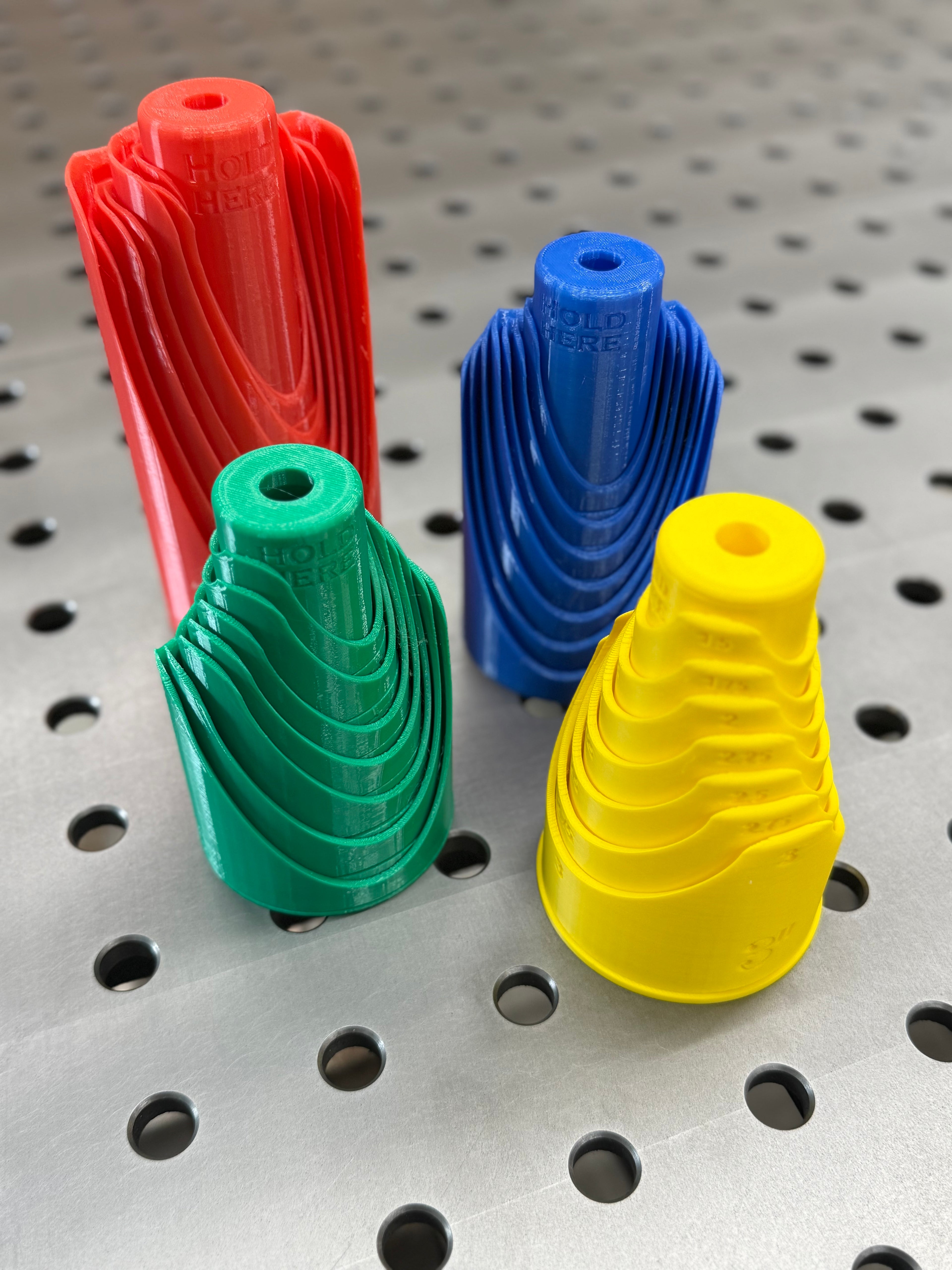

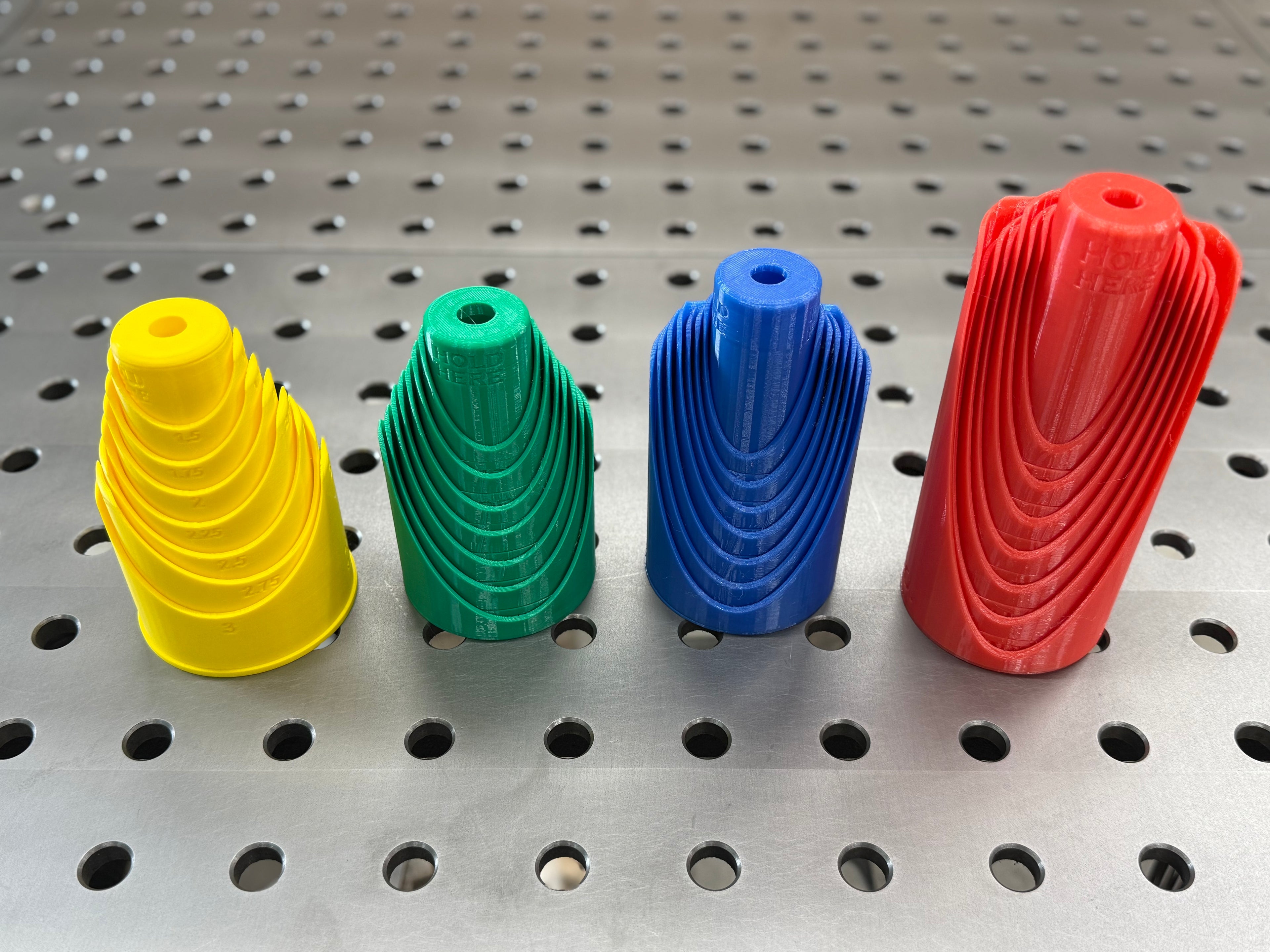

The tube notching template is an essential tool for fabricators and DIY enthusiasts seeking accuracy and efficiency. This Tube Notching Template Bundle includes 28 reusable templates that allow for rapid layout of tube notches without the hassle of printing paper templates or endless calculations. With templates catering to four common joint angles and seven different round-tube outside diameters, achieving precise cuts has never been easier.
To use the templates, simply select the appropriate one based on your tubing OD and desired angle. Align the template around the tube, ensuring that the centerline is accurate, and trace the cutting profile directly onto the material. Once you have marked the template, proceed to make the cut using your preferred tools for a fine finish before welding.
Key Features
- Streamlined layout process for professional and hobbyist projects alike.
- Reduces wasted time on measuring and re-measuring, ensuring consistency in cuts.
- Templates accommodate various angles including 30°, 45°, 60°, and 90° for versatile applications.
- Compatible with tubing sizes ranging from 1.5 inches to 3 inches in outside diameter, making it suitable for diverse projects

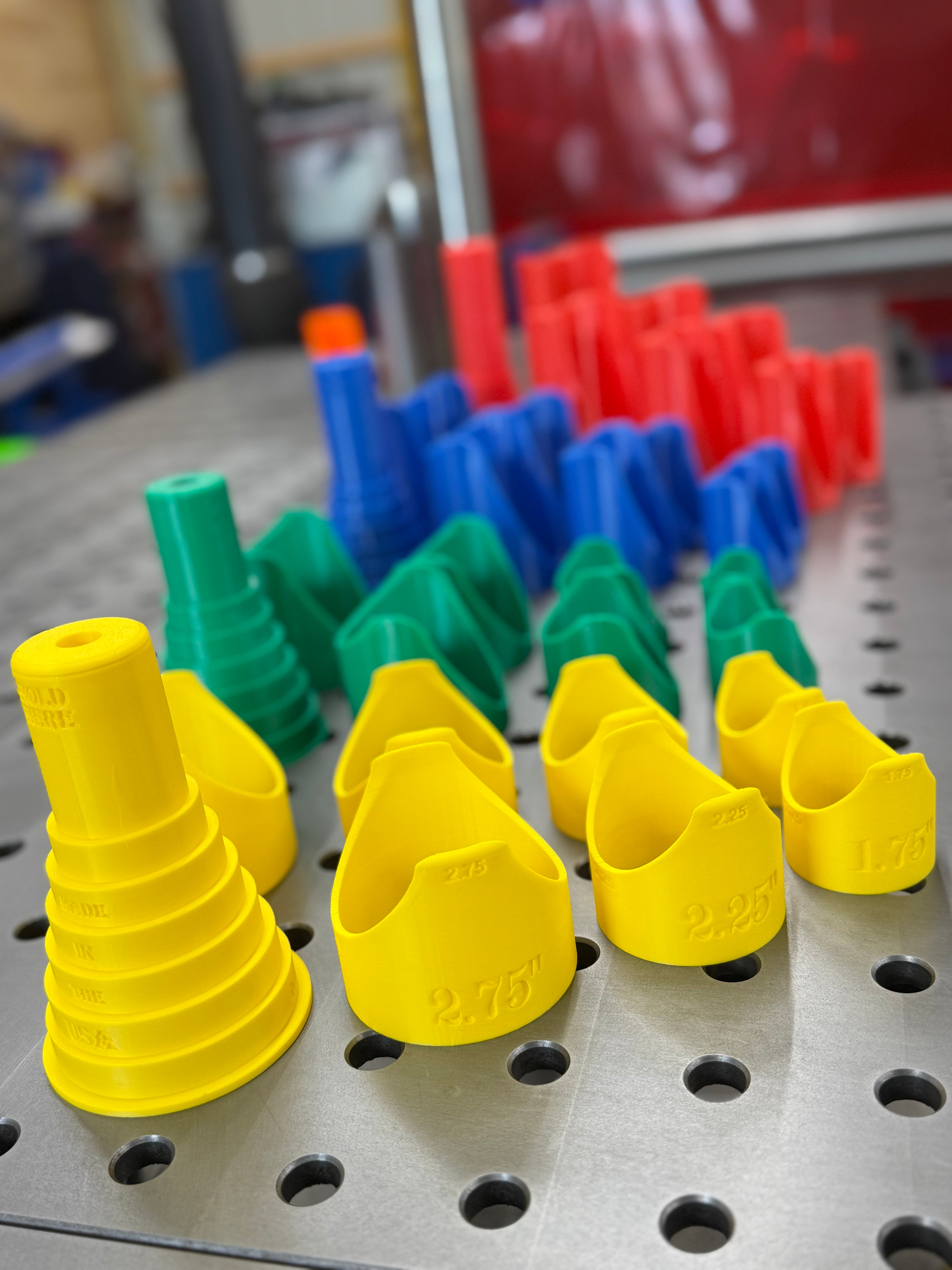

- 1.5”, 1.75”, 2”, 2.25”, 2.5”, 2.75”, and 3”.
- Designed for repeated use across different tasks, ideal for crafters, mechanics, and builders.
Applications
This bundle is perfect for:
- Race car and motorsports roll cages
- Custom tube bumpers and off-road frames
- Exhaust systems, including headers and Y-pipes
- Chassis and suspension fabrication
- Structural railings and tubing work
- Multiple welding projects in both professional shops and home environments
What You Get
With the Tube Notching Template Bundle, you receive:

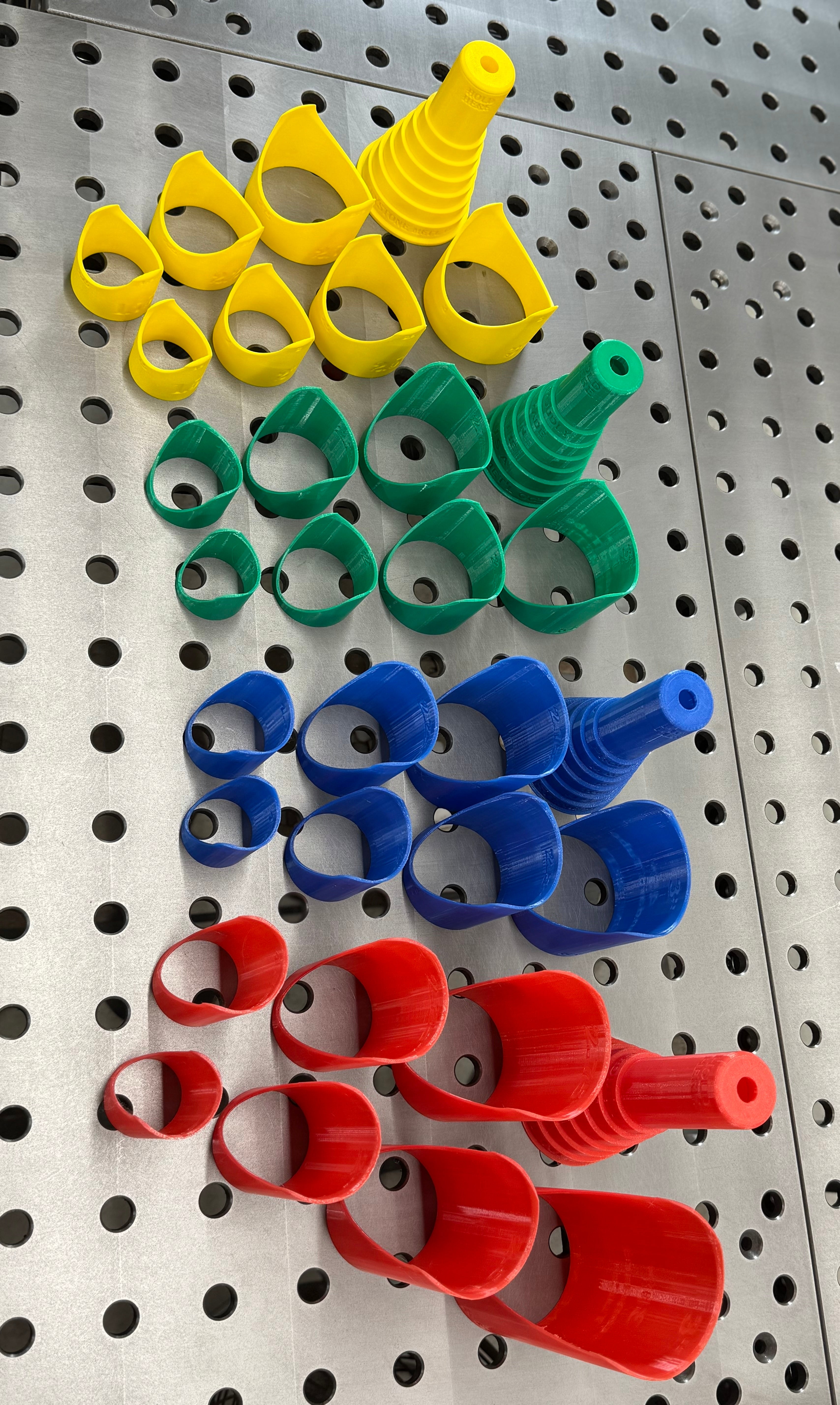

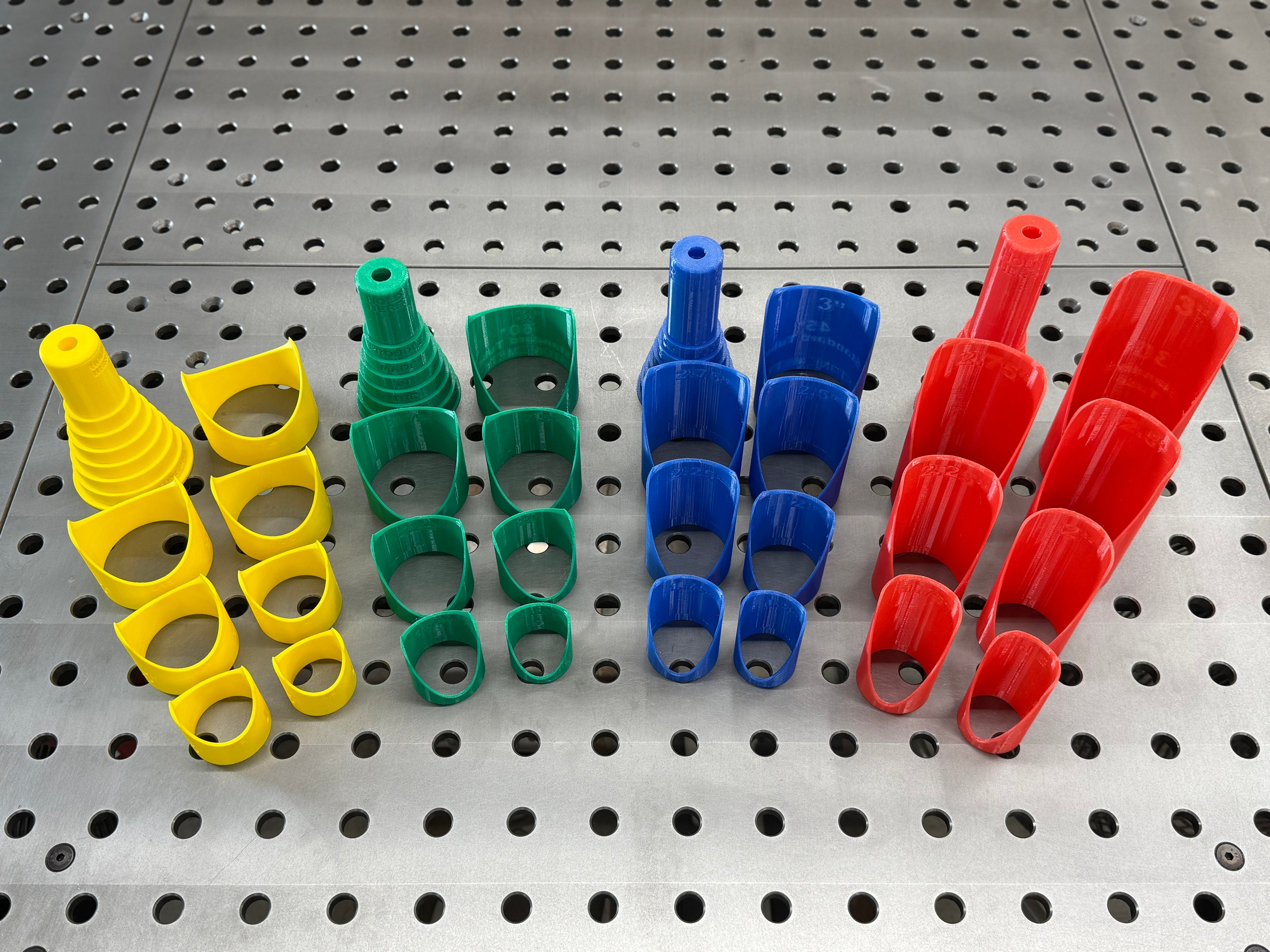

- 28 total tube notching templates, each marked for consistency
- Templates designed for various angles and tubing ODs
Usage Instructions
- Choose the template that matches your tubing diameter and joint angle.

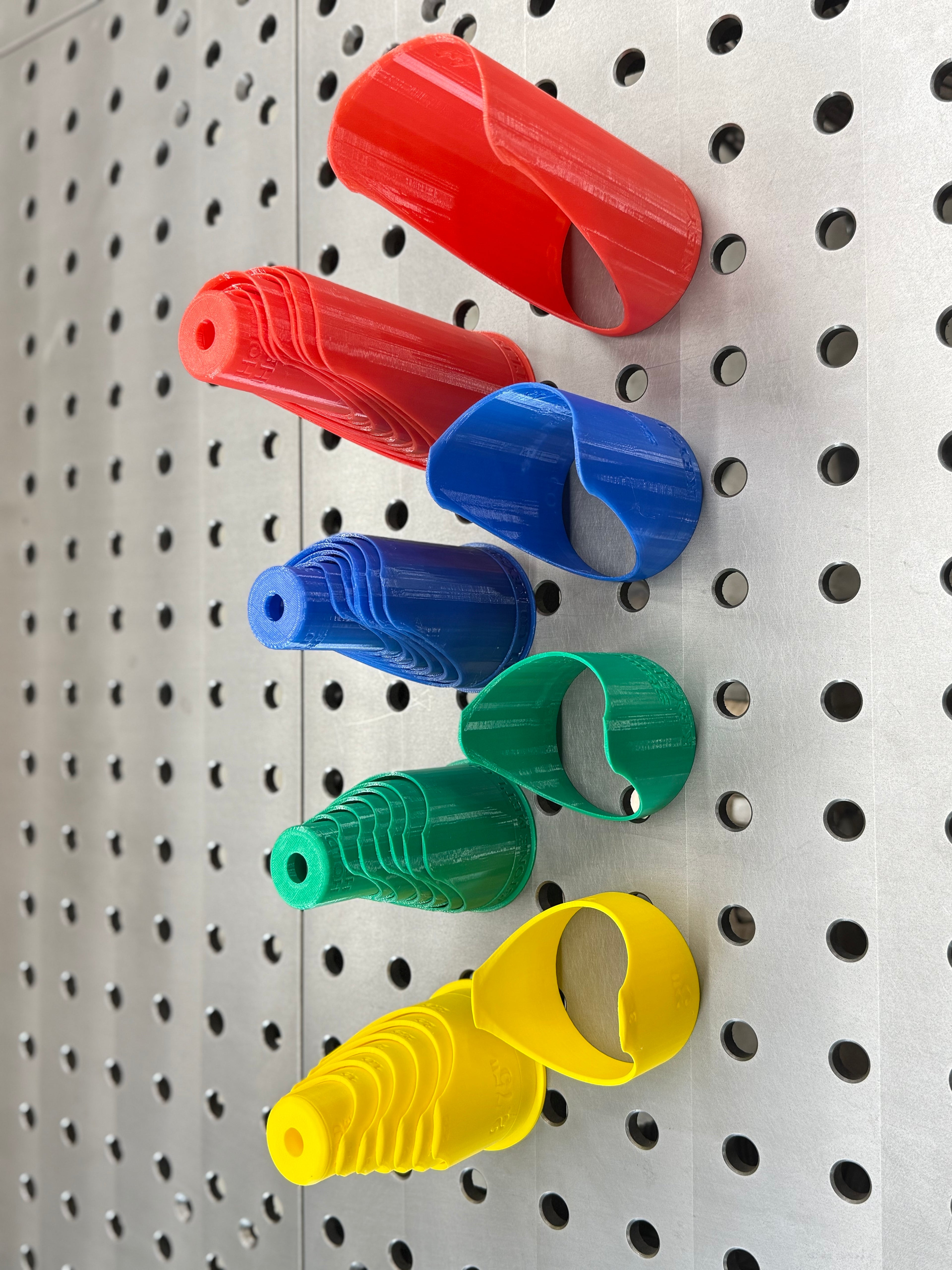

- Position the template around the tubing end.
- Trace the notch profile using a marker.
- Cut the tube slightly outside the marked line.
- Fine-tune the fit and test before welding.
For guidance on using these templates effectively, read our step-by-step guide to using tube notching templates.
