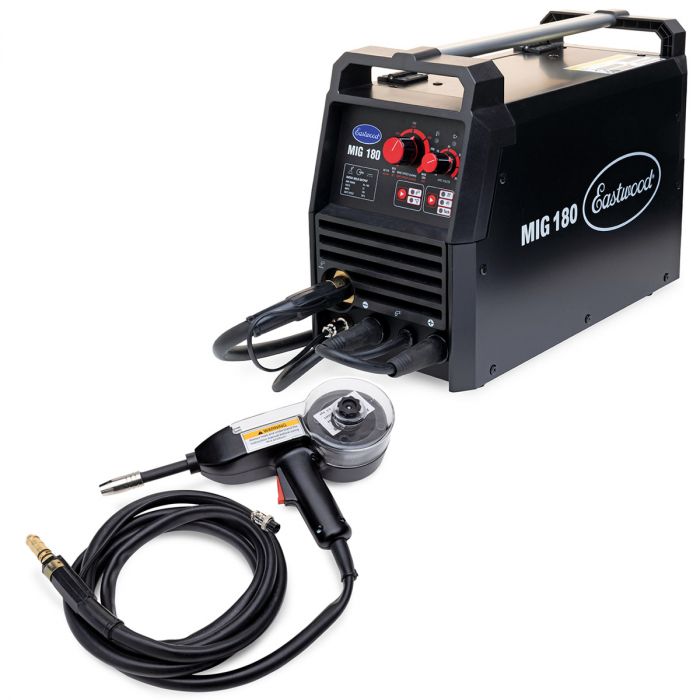

Eastwood MIG 180 Amp Welder w/ Spool Gun
$599.99
As versatile as it is powerful, Eastwood's MIG 180 welder with spool gun is capable of welding steel, stainless steel, or aluminum on either 120V or 240V power.
Eastwood MIG 180 with Spool Gun Features:
- Versatile dual-power MIG welder runs on either 120V or 240V
- Latest IGBT inverter technology makes it lightweight and precise

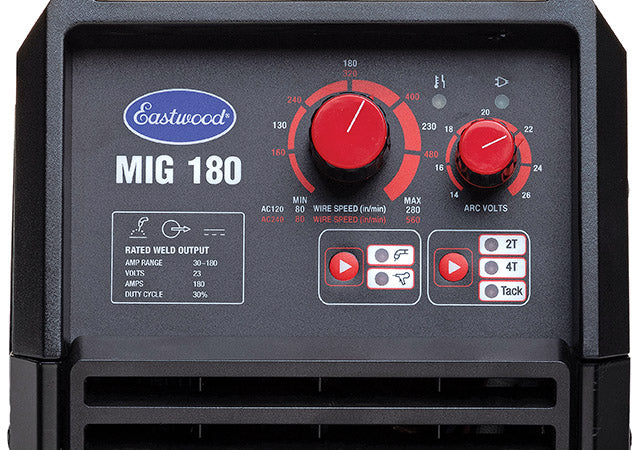

- Tack setting delivers precisely timed tack welds to prevent overheating
- 2T & 4T settings offer greater precision and comfort
- Tweco-style torch uses commonly available consumables for convenience
- Welds mild and stainless steel up to 5/16-in thick

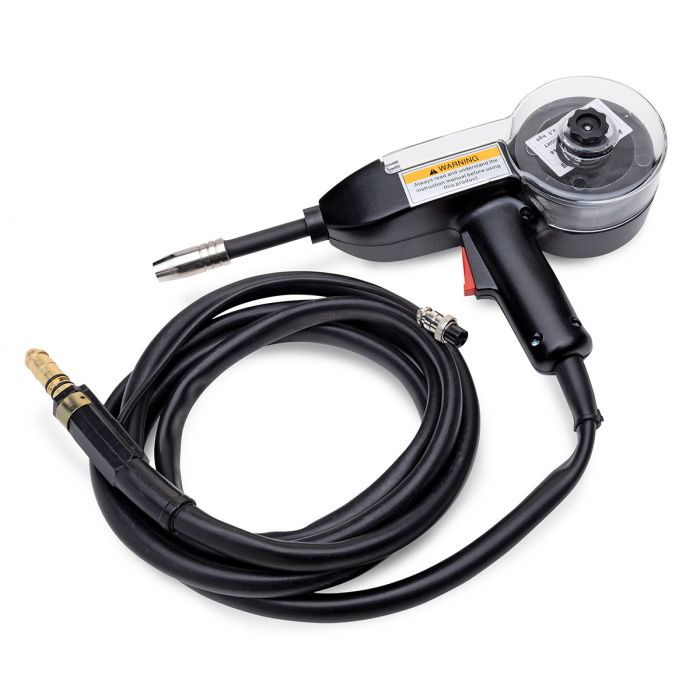

- Includes spool gun for welding aluminum up to 1/4-in thick
- Metal drive motor for smooth operation
- 30% duty cycle at 180 amps (60% at 130 amps)
- Backed by Eastwood's no-hassle return policy and 3-year warranty
Packed with the latest IGBT inverter technology and quality features, the Eastwood MIG 180 delivers precision welds on sheet metal and other light steel and stainless steel projects up to 5/16-in. thick. Or weld aluminum up to 1/4-in. thick using the included spool gun with this versatile 180-Amp welder that runs on either 120V or 240V power.
Experienced welders as well as beginners will appreciate the MIG 180’s professional-quality features and construction. A tack-weld setting allows for perfectly timed short pulses, perfect for plug welds and spot welds. It also includes 2T and 4T controls for greater precision and comfort, especially for long welds.
The MIG 180 includes a Tweco-style torch that uses commonly available consumables. It doubles as a flux-core welder for gas-free welding and can also weld aluminum with the included spool gun. With all these great features, the MIG 180 matches the overall performance of more expensive welders. And it’s all backed up by Eastwood’s 3-year warranty and lifetime tech support.
What's Included:
- MIG 180 Welder
- Spool Gun with 9.5-ft. cable (works with a 4 inch wire spool only) and .035-in. (0.9mm) Contact Tip
- 4043 Aluminum Wire Spool 0.035 (0.9mm), 4 inch (1 lb)
- Gas Regulator with hose
- 8.5-ft. Ground Clamp
- NEMA 5-15P to NEMA 6-50R Adapter Cord (240v to 120v), 2-ft.
- MIG Torch, Nozzle, 0.030-in. (0.8mm) Contact Tip and 8-ft. Cable
- Contact tip wrench
- Additional contact tips (.030-in. and .035-in.)
- Instruction Manual
- 3-Year “No Hassle” Warranty
Instructions & Guides:
33990Q.pdf
| Rated Electrical Input: |
240 VAC; 29.6 AMP
120 VAC; 24 AMP
|
| Required Breaker Size: |
30 amp |
| Power Voltage: |
1 Phase, 120VAC / 240VAC, 60 Hz |
| Power Cord Receptacle Plug: |
NEMA 6-50R |
| Max Voltage at No Load: |
61 V DC |
| Rated Duty Cycle: |
120V: 30% @ 90 Amps
120V: 60% @ 65 Amps
120V: 100% @ 50 Amps
240V: 30% @ 180 Amps
240V: 60% @ 130 Amps
240V: 100% @ 100 Amps
|
| Torch Consumables: |
Tweco style nozzle and contact tips |
| Wire Feed Rate (IPM/Inches Per Minute): |
120V: 80 - 280 IPM
240V: 80 - 551 IPM
|
| Wire Sizes: |
0.023-in. (0.6mm) – 0.030-in. (0.8mm) mig wire
0.030-in. (0.8mm) – 0.035”(0.9mm) flux core wire
|
| Welding Wire Spool: |
4-in. and 8-in. spool, up to 11 lbs |
| Maximum Welding Thickness - Steel: |
5/16-in. |
| Output Current Range: |
120V: 30 - 120 Amps
240V: 30 - 180 Amps
|
| Weight: |
25.3 lbs (11.5 kg) |
| Overall Dimensions: |
18-in X 8.5-in X 13.25-in. |
Item # 33990
