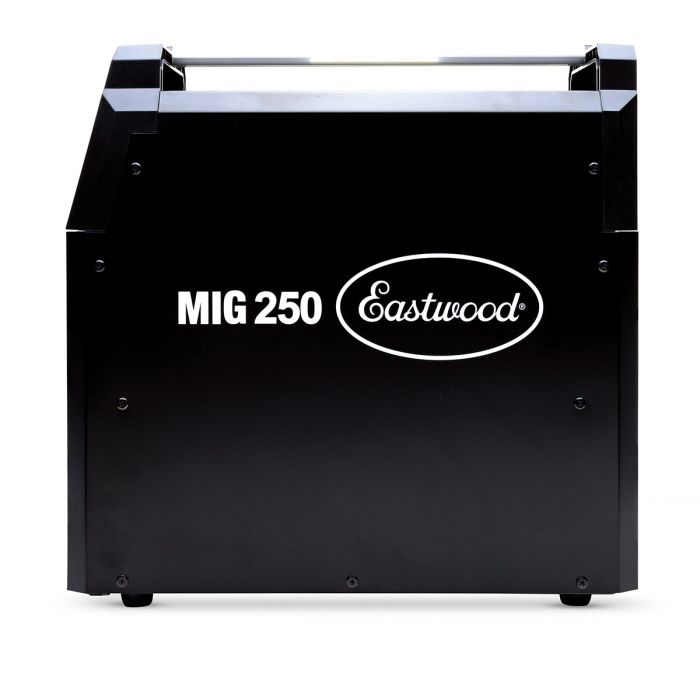

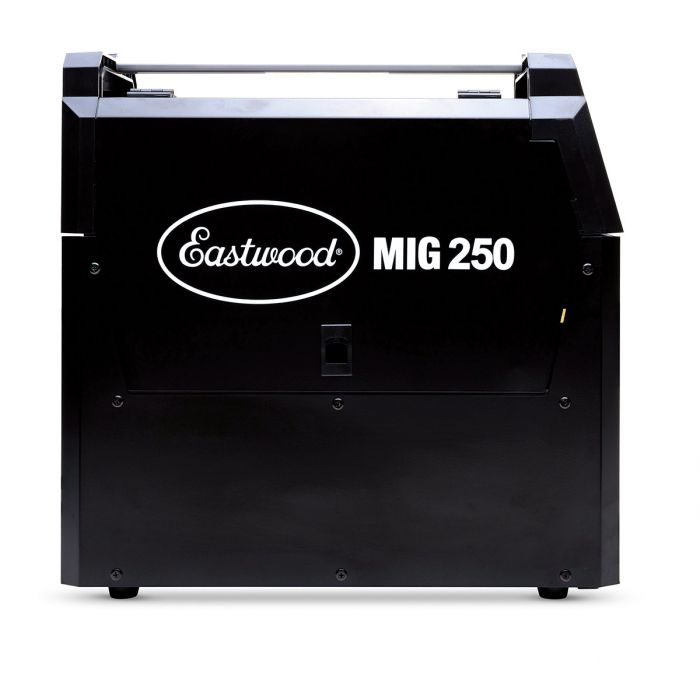

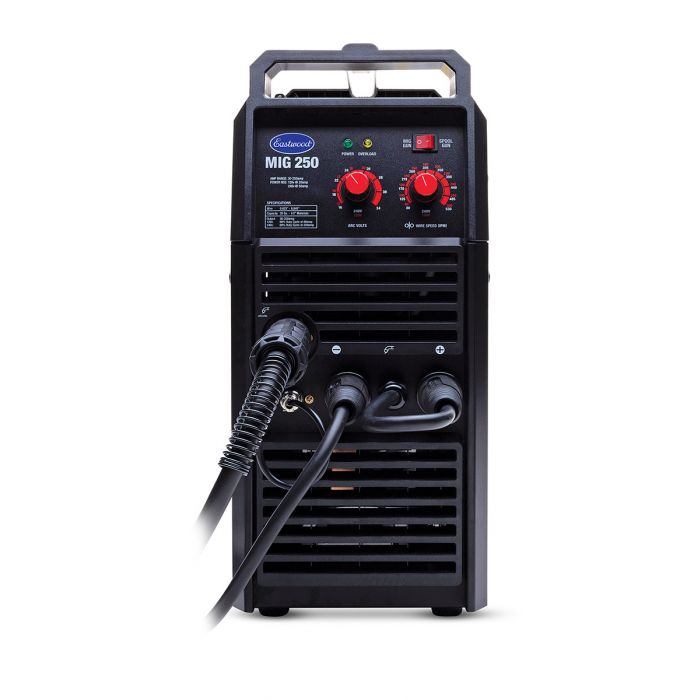

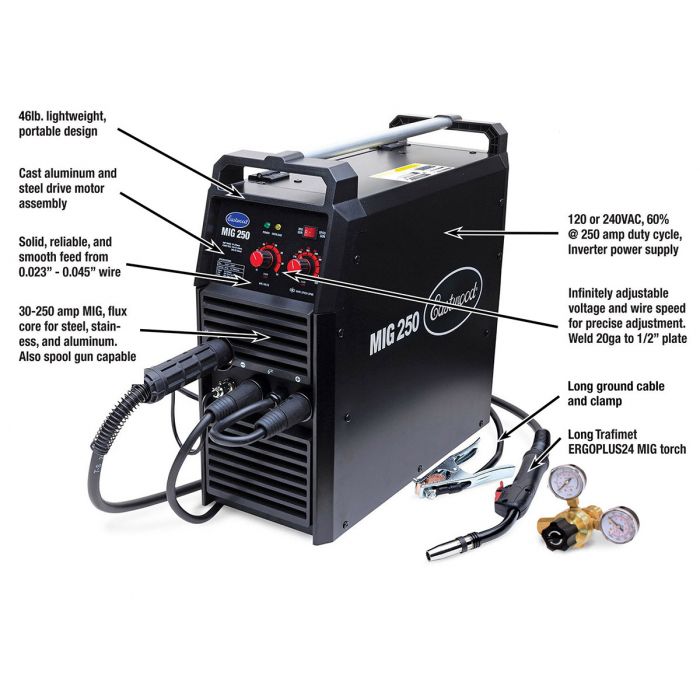

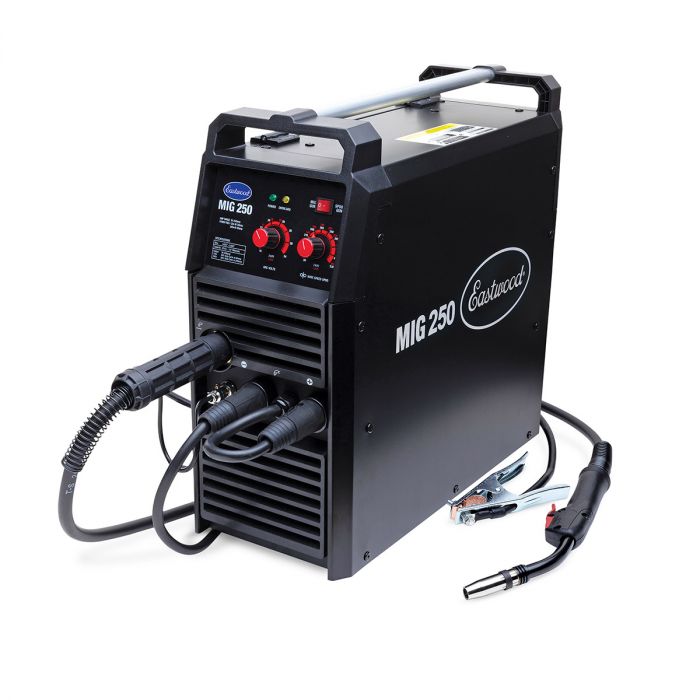

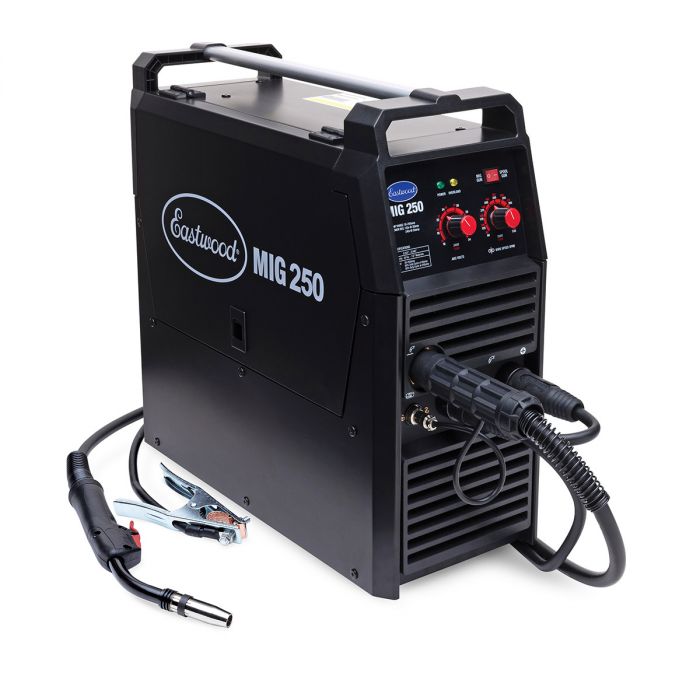

Get the power you need for big welding jobs with the Eastwood MIG 250. This advanced 250-Amp MIG welder can be used on a wide range of projects from 20-ga sheet metal up to 1/2-in. steel plates. Infinitely adjustable output lets you set the amperage anywhere between 50- and 250-Amps for greater control.
With the flexibility to run on either 120V or 240V power, you can plug it in virtually anywhere you’re working. And thanks to its lightweight inverter technology, the MIG 250 weighs just 46-lbs – half that of similar welders – so you take it just about anywhere.

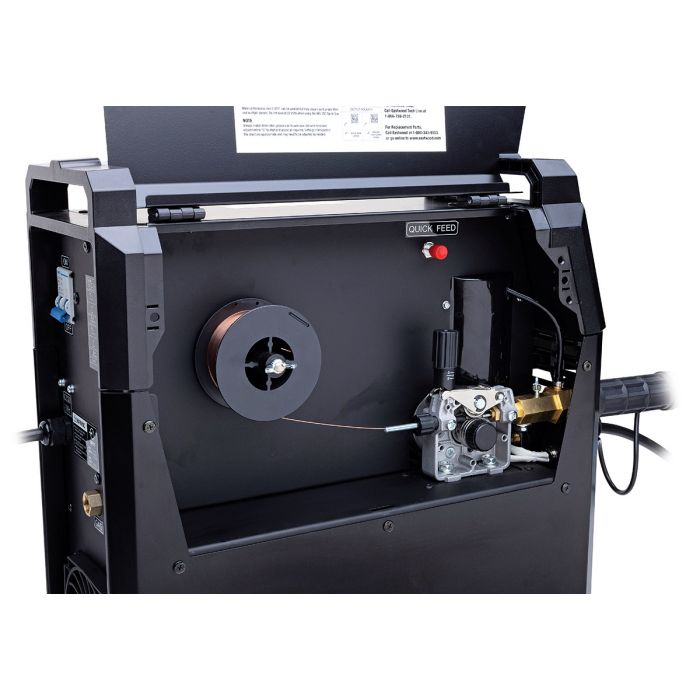

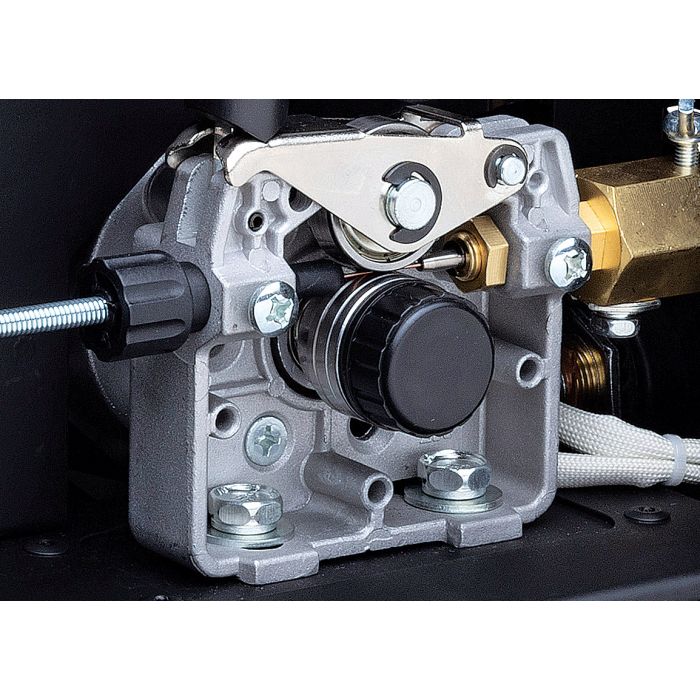

Equipped with a long, ergonomically designed Trafimet ERGOPLUS24 torch, an 8-ft. power cable, and a 9.5-ft. ground cable, the MIG 250 makes comfort a top priority as move around your project. A cast aluminum and steel drive motor feeds 0.023-in. to 0.045-in. MIG wire or 0.030 to 0.045-in. flux-core wire smoothly and reliably. The ability to run either 4-in. (2-lbs) or 8-in. (10-lbs) spools of wire gives you additional flexibility, and with the optional MIG welder spool gun installed, you can also weld aluminum.
And it’s all backed up by Eastwood’s 3-year warranty and lifetime tech support.
What's Included:
- (1) MIG 250 Welder
- (1) Trafimet ERGOPLUS24 MIG torch
- (1) Ground Cable with Clamp
- (1) Shielding Gas Regulator
- (1) Shielding Gas Hose
- (1) Extra Contact Tips (2) .030-in. and (2) 0.040-in.
- (1) 8-in. Wire Spool Adapter
- (1) 120/240 VAC Adapter Cord
- (1) Contact Tip Wrench
- (1) 0.023-in. to 0.045-in. (0.9 / 1.2 mm) Drive Roller
- (1) Instruction Manual
Instructions & Guides:
| Rated Electrical Output: | 240 VAC: 50/60HZ: 50-250 AMP | 120 VAC: 50/60HZ:50-140 AMP |
| No Load Voltage: | 61 Volt |
| Rated Input Current: | 240 VAC: 46.2 AMP | 120VAC: 20 AMP |
| Output Current Adjustment: | 240 VAC: 50-250 AMP | 120VAC: 50-140 AMP |
| Power Input At Rated Output: | 240 VAC: 43.3 AMP | 120VAC: 20 AMP |
| Output Voltage: | 240 VAC: 16.5V – 26.5V | 120VAC: 16.5V – 21.0V |
| Duty Cycle: | 240 VAC: 60% @ 250 AMP and 100% @ 194 AMP | 120VAC: 60% @ 140 AMP and 100% @ 60 AMP |
| Overall Dimensions: | 20.07-in. x 8.66-in. x 19.69-in. |
| Weight: | 46 LBS. |
| Power Cord Length: | 6-ft. |
| Wire Diameter: | Solid Steel and Stainless Steel .023-0.45-in. (0.6-1.2mm) Flux Core 0.30-0.45-in. (0.8-1.2mm) Aluminum .030-0.35-in. (0.8-.9mm) |
| Post Flow Time: | 1 +- 0.5 seconds |
| Wire Speed: | 240 VAC: 80-530 ipm | 120VAC: 80 – 300 imp |
Item # 33930
