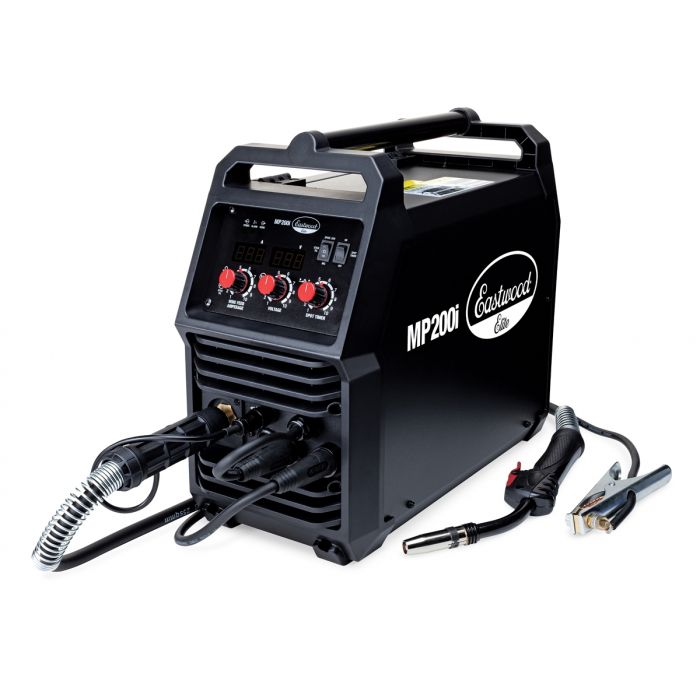

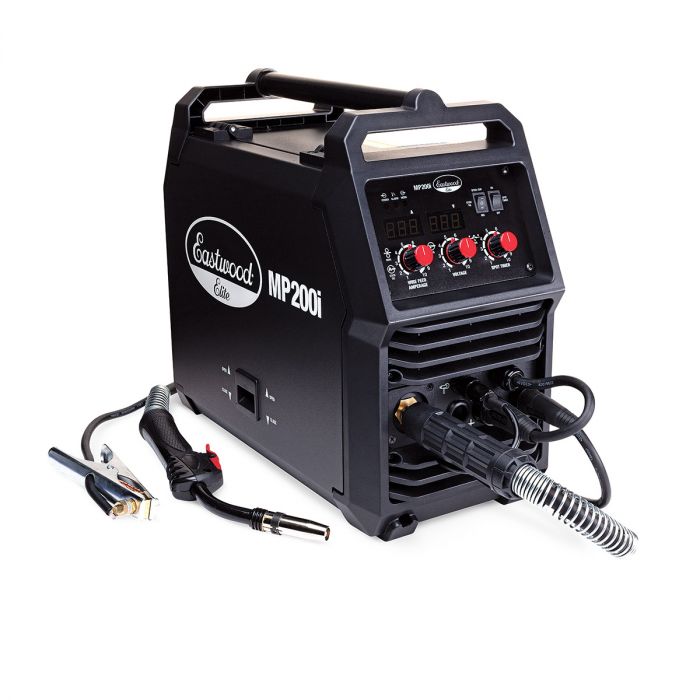

A powerful all-around welder, the Eastwood Elite MP200i lets you MIG, TIG, flux, or stick weld steel or aluminum up to 3/8-in thick with just a single machine.
Eastwood Elite MP200i features:
- Welds up to 3/8-in thick steel, stainless steel, or aluminum (with optional spool gun)
- Multi-process machine for MIG, TIG, stick, or flux welding

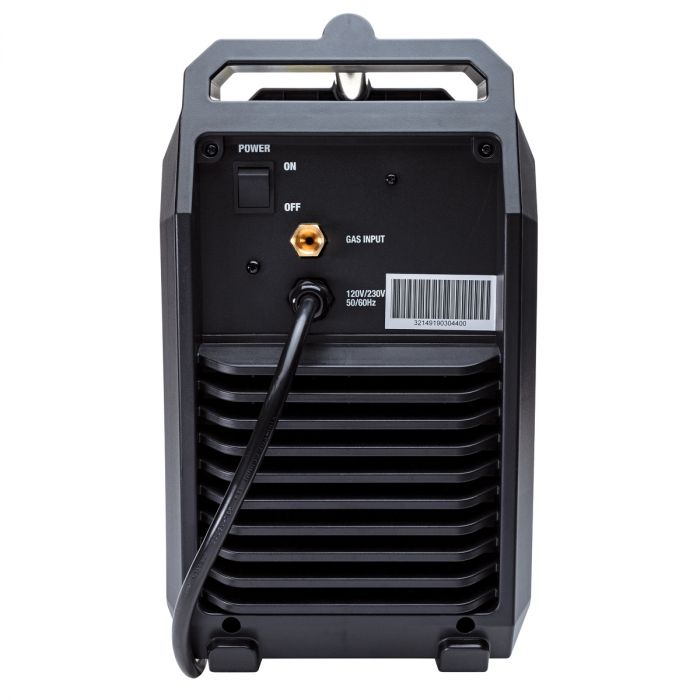

- Versatile dual-power welder operates on either 120V or 240V
- Includes 3 professional-quality torches that use commonly available consumables for convenience
- Built-in spot-welder timer for consistent spot welds

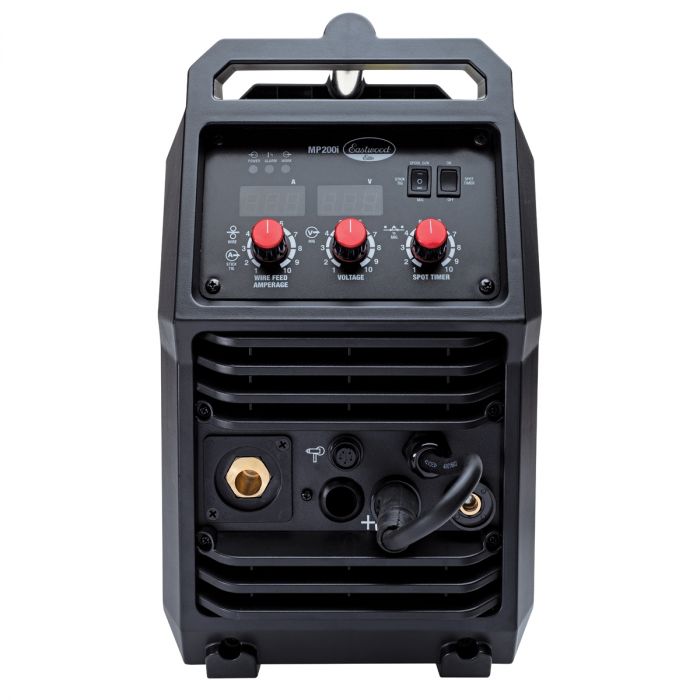

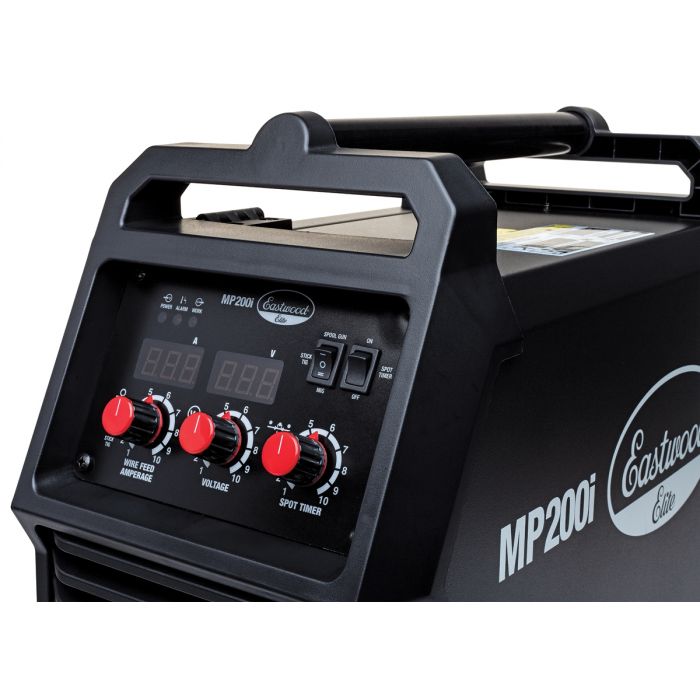

- Infinitely adjustable control knobs and digital display ensure accuracy
- Latest IGBT inverter technology for stable arc and reduced weight
- Heavy-duty metal drive motor for smooth, reliable operation
- 20% duty cycle at 200 (30% at 90 amps)
- Backed by Eastwood's no-hassle return policy and 3-year warranty
Description:
The Eastwood Elite MP200i multi-process welder is designed to do it all – MIG, TIG, flux-core, and stick. And there’s no compromises when it comes to the results – it has all the same capabilities and features as you would find in individual standalone welders. equipped with a trio of professional-grade torches that use common consumables.
Operating on either 120V or 240V power, the 200-Amp MP200i packs enough punch to weld up to 3/8-in. thick steel or stainless steel. It can also weld aluminum with the addition of an optional spool gun.
It’s packed with quality features, too, like infinitely adjustable controls, digital displays, a built-in spot weld timer, and a heavy-duty wire feed motor. And because it uses the latest IGBT inverter technology, we were able to keep this welder down to just 34-lbs for portability.
And it’s all backed up by Eastwood’s 3-year warranty and lifetime tech support.
What's Included:
- (1) - MP200i Dual-Voltage, Multi-Process Welder
- (1) – Adapter Cord, 12 Ga., 3-ft. [0.91m], 120Volt 30 Amp Plug/NEMA 50R Receptacle
- (1) - Shielding Gas Regulator
- (1) - Shielding Gas Hose, 4.6-ft. [1.4m]
- (1) - Ground Clamp with 10-ft. [3m] Cable
- (1) - Trafimet ERGOPLUS 24, Tweeco Style MIG Torch. 10-ft. Length. (0 .030-in./0.8mm contact tip installed)
- (5) - Spare 0.030 Contact Tips
- (1) - Electrode Holder with 12.5-ft. [3.8m] Cable
- (1) - WP-17v TIG Torch with 10-ft. [3m] cable, 14-ft. [4.3m] Gas Line
- (1) - #4 Gas Nozzle (1/4-in.)
- (1) - #5 Gas Nozzle (5/16-in.)
- (1) - #6 Gas Nozzle (3/8-in.) (Installed)
- (1) - Short Black Cap (Installed)
- (1) - Long Black Cap
- (1) - Collet Body, 1/8-in. [3.2mm] (Installed)
- (1) - Collet, 1/16-in. [1.6mm] (Installed)
- (1) - Collet, 1/16-in. [1.0mm]
- (1) - Collet, 1/16-in. [2.0mm]
- (1) - 1/16-in. x 6-in. Tungsten (Gray)
- (1) - Welding Wire Spool, 2lb., 0.030-in. Solid Wire
- (5) - Welding Rods, 1/8-in. E6013
A foot pedal for TIG welding CANNOT be connected to this unit. It is a scratch start TIG machine.
Instructions & Guides:
20569Q.pdf
| Input power: |
VAC 120-230 |
| Frequency: |
50/60 Hz |
| Rated input current: |
20 Amps 120 VAC - 36 Amps 230 VAC |
| Rated working voltage: |
18.5 volts @ 120 VAC - 24 volts @ 230 VAC |
| MIG welding current: |
30-90 A @ 120 VAC | 30-200 A @ 230 VAC |
| TIG welding current: |
20-70 A @ 120 VAC | 20-200 A @ 230 VAC |
| Stick welding current: |
30-70 A @ 120 VAC | 30-170 A @ 230 VAC |
| Rated duty cycle: |
120 VAC 40% @ 90A - 230 VAC 20% @ 200A |
| Weight: |
34 lbs. |
Recommended MIG Welding Wire
| Solid: |
0.023-0.035-in. (0.6-0.9mm) |
| Stainless: |
0.023-0.035-in. (0.6-0.9mm) |
| Flux Core: |
0.030-0.035-in. (0.8-0.9mm) |
Recommended ARC Welding Rods
| E6010: |
1/16-in.,3/32-in.,1/8-in. - Polarity: DCEN |
| E6011: |
1/16-in.,3/32-in.,1/8-in. - Polarity: DCEN |
| E6013: |
1/16-in.,3/32-in.,1/8-in. - Polarity: DCEN, DCEP |
| E7014: |
1/16-in.,3/32-in.,1/8-in. - Polarity: DCEN, DCEP |
Recommended 20645Spool Gun Welding Wire
| 4043 Aluminum: |
0.030-0.035-in. (0.8-0.9mm) |
Duty Cycle
The rated Duty cycle refers to the amount of welding that can be done within an amount of time. The Eastwood MP200i has a duty cycle of 20% at 200 Amps for 230 Volts and 40% at 90 Amps for 120 Volts. It is easiest to look at your welding time in blocks of 10 Minutes and the Duty Cycle being a percentage of that 10 Minutes. If welding at 200 Amps with a 20% Duty Cycle, within a 10 Minute block of time you can weld for 2 Minutes with 8 Minutes of cooling for the Welder.
If the Duty Cycle is exceeded, the Welder will automatically shut off, however the fan will continue running to cool the components. When a safe temperature has been reached, the Welder will automatically switch the Welder output back on. To increase the duty cycle you can turn down the Voltage Output control.
